Forms

Form submission webhook

A webhook posts each submission to a URL you own as JSON, which is how a form becomes part of a system rather than a list you copy from. The important detail is that it fires once and does not retry.

Create a form with OneCraftThe exact payload shape, the timeout, and the security rules on the URL

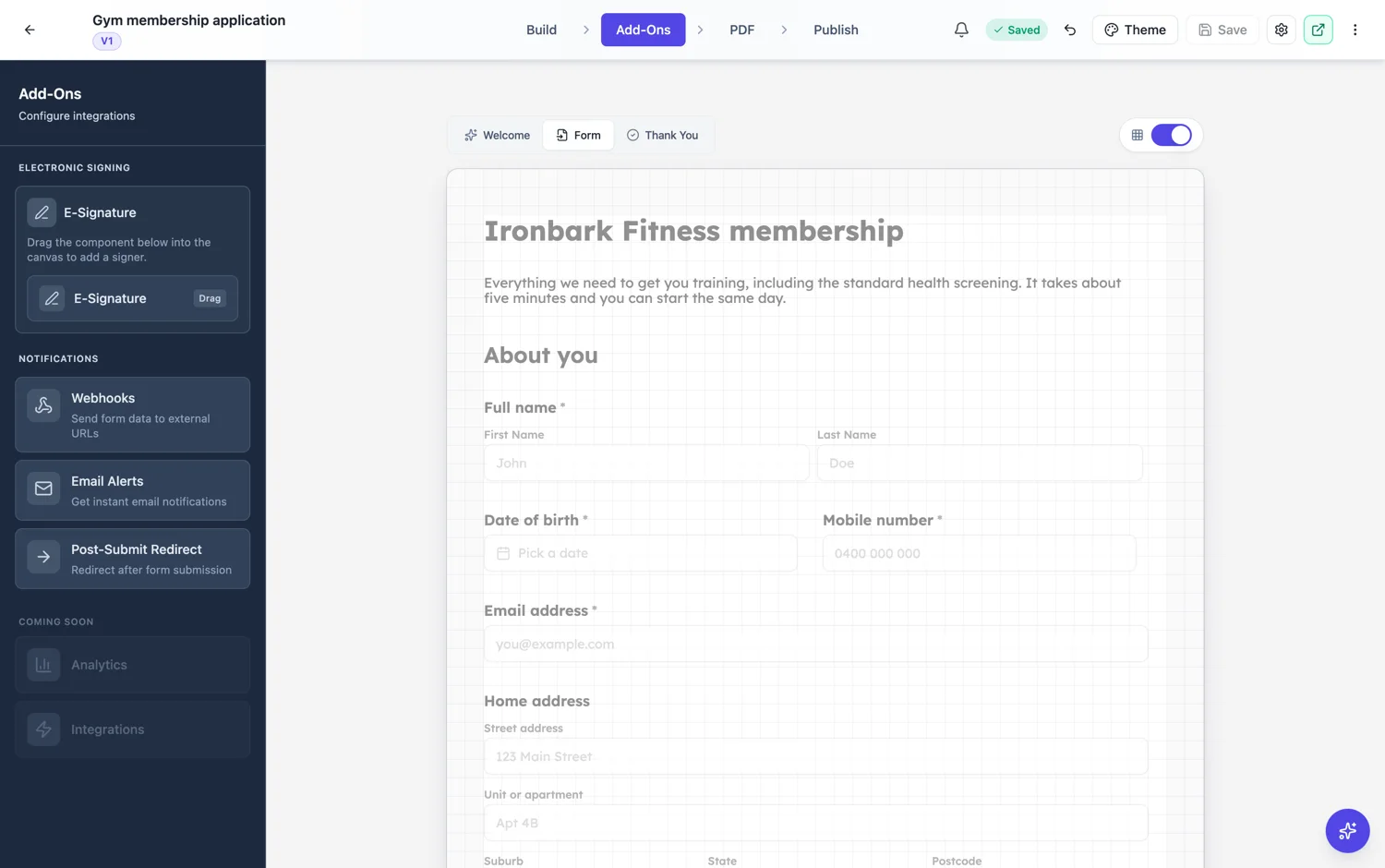

The Add-Ons panel of the form builder showing e-signature, webhooks, email alerts and post-submit redirect — The four add-ons: e-signature, webhooks, email alerts and a post-submit redirect.

The payload

A JSON body with four parts. An event name marking it as a form submission. A timestamp. A form object with the id, the title and the slug. And a response object with its id, a data map keyed by your field labels, and a raw data map keyed by the internal field ids. Two maps because labels are readable and ids are stable, and a receiving system usually wants both.

One attempt, ten seconds

The post is made once with a ten second timeout, and there is no retry queue. If your endpoint is down or slow, that submission is not delivered again. Build the receiver to answer quickly and queue the work on its own side rather than doing the processing inside the request. The submission itself is safe either way, because it is already stored in your responses.

Redirects and private addresses are blocked

Only http and https URLs are accepted. Redirects are not followed, so a URL that answers with a 302 fails rather than being chased. The hostname is resolved and rejected if it points at a private or otherwise blocked address, which stops a webhook being used to reach inside a network. Give it the final public URL rather than a shortener.

What it is good for

Pushing a lead into a CRM, opening a ticket, writing a row into a warehouse, or triggering an automation platform that does the branching you cannot do in the form. Because the payload carries labels and ids, the receiving side can match on ids and still show something readable when a human looks at the log.

How it works, in three steps

Step 1
Stand up an endpoint that answers fast
Accept the post, queue the work, return a success status inside ten seconds.
Step 2
Set the URL on the form
A final public https URL. Not a shortener, because redirects are not followed.
Step 3
Match on ids, display labels
Field ids are stable across label changes, so key your logic on those and use the labels for humans.

The full walkthrough with screenshots is in the guide Automate your form with add-ons.

Limits worth knowing

One attempt per submission. There is no retry.
Ten second timeout.
Redirects are not followed and non-http schemes are rejected.
Hosts that resolve to private or blocked addresses are refused.
One webhook URL per form.

See it on a finished piece

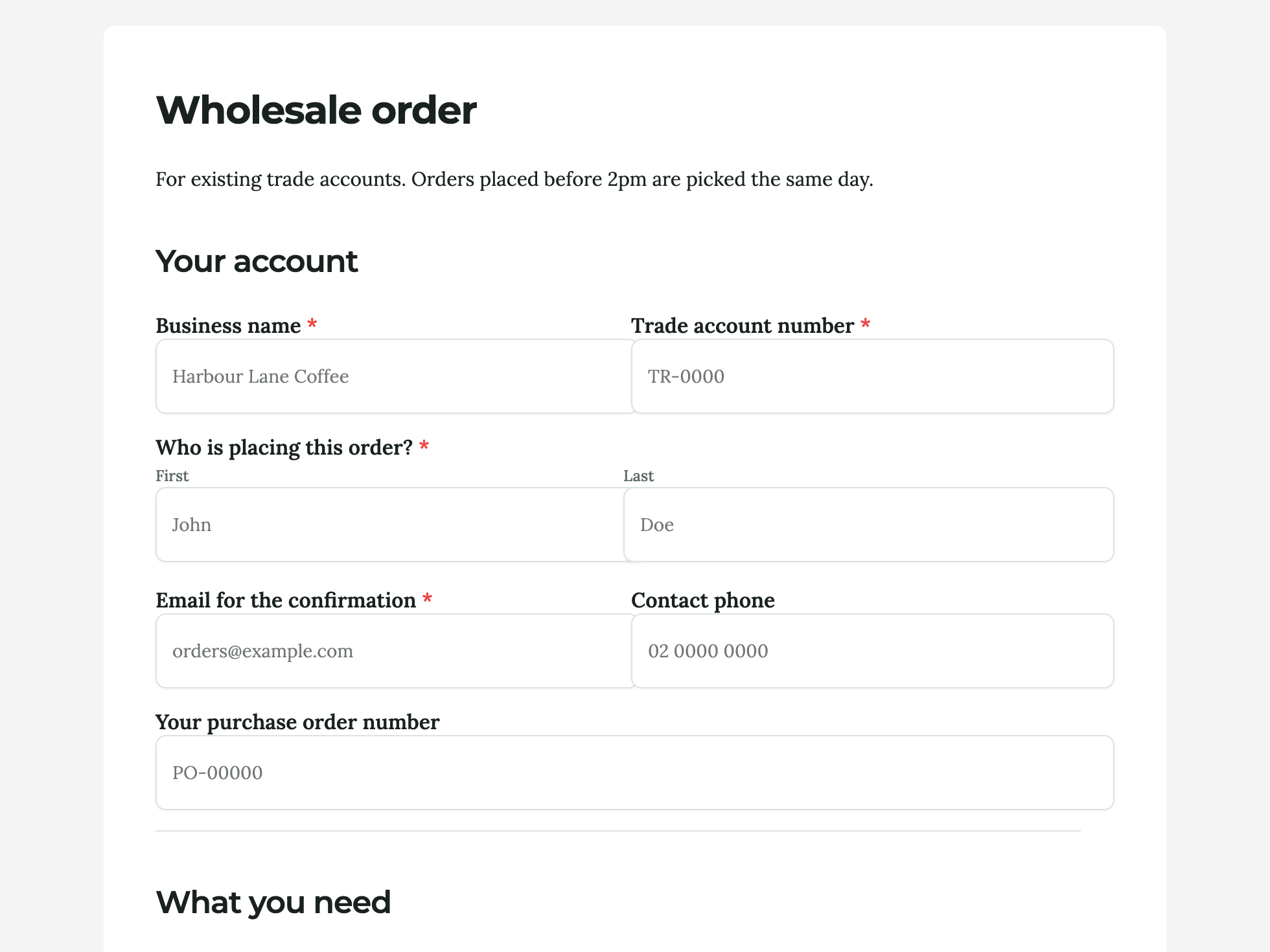

Product order form

16 fields

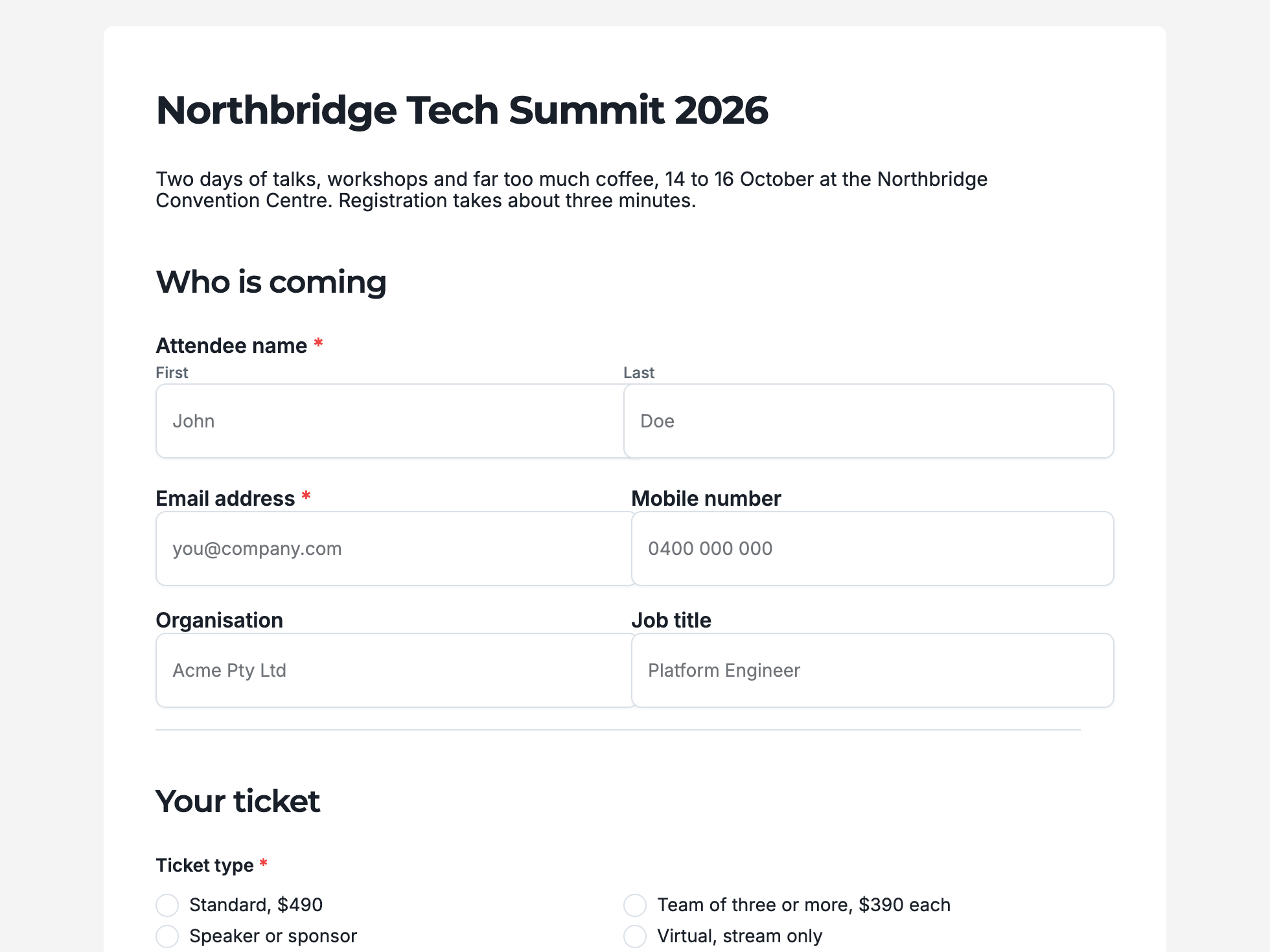

Conference registration form

11 fields

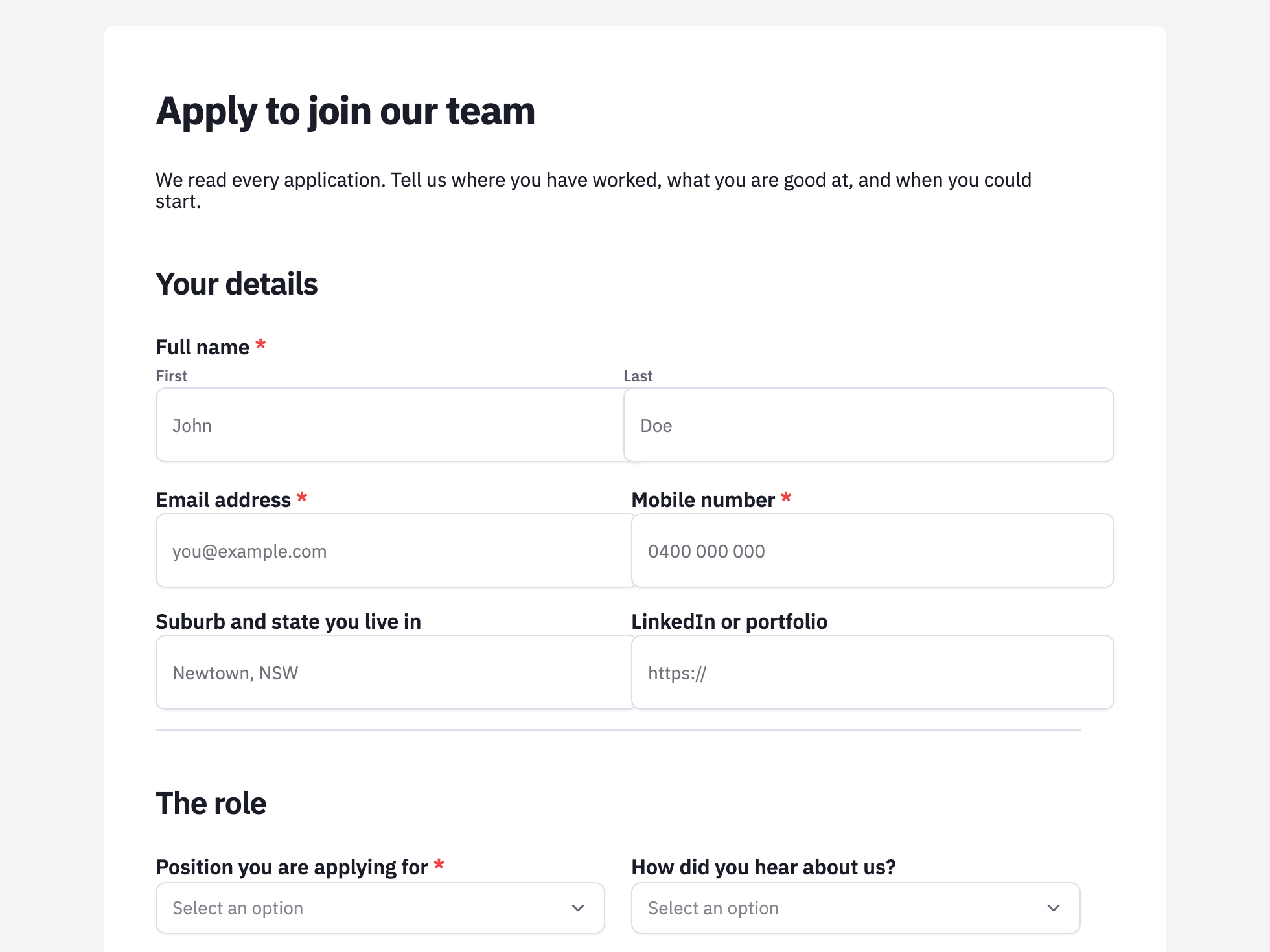

Job application form

20 fields

Questions people ask

Does the webhook retry if my endpoint is down?

No. It fires once with a ten second timeout. The submission is still stored in your responses, so nothing is lost, but the post is not repeated.

Why is my webhook URL rejected?

The three usual reasons are a scheme other than http or https, a URL that answers with a redirect, or a hostname that resolves to a private address.

Should I key my integration on labels or ids?

On ids. They are stable when somebody renames a field, and the payload carries both so you can still show the label to a person.

Make your own form

The button opens the generator with this use case already described. Change the wording to match yours, generate, then edit anything you like.

Create a form with OneCraft
